Saturday, January 29, 2022, 19:24 - NSE4(v7)
Posted by Administrator

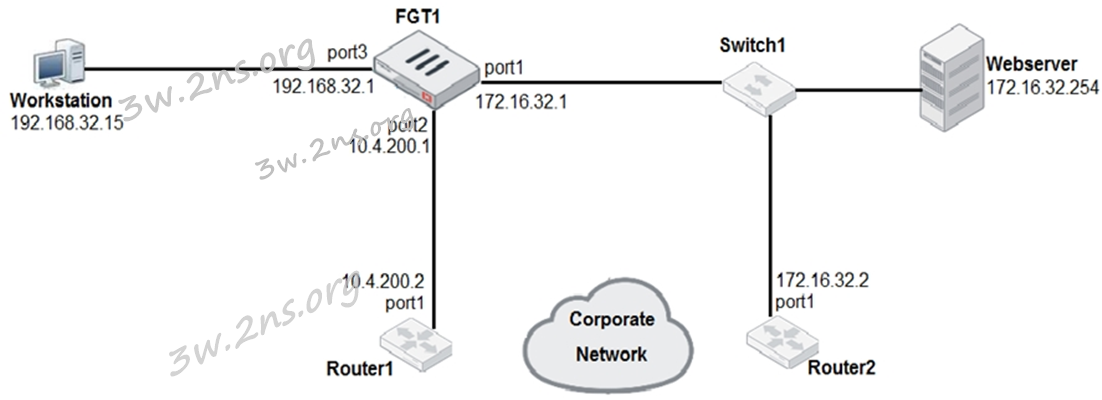

[77] Examine the network diagram shown in the exhibit, then answer the following question:
Which one of the following routes is the best candidate route for FGT1 to route traffic from the Workstation to the Web server?



A. 172.16.0.0/16 [50/0] via 10.4.200.2, port2 [5/0]
B. 0.0.0.0/0 [20/0] via 10.4.200.2, port2
C. 10.4.200.0/30 is directly connected, port2
D. 172.16.32.0/24 is directly connected, port1









Answer: D
